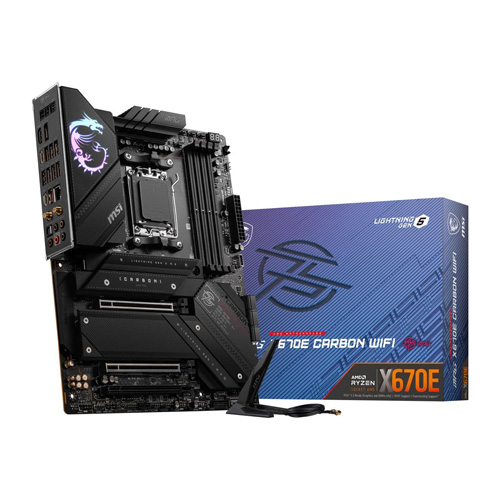

MSI MPG X670E CARBON WIFI DDR5 AM5 AMD Ryzen 7000 Series Wi-Fi 6E ATX Motherboard

MSI MPG X670E CARBON WIFI DDR5 AM5 AMD Ryzen 7000 Series Wi-Fi 6E ATX Motherboard

Overviews
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory
Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Model
Brand : MSI
Series : MPG
Model : MPG X670E CARBON WIFI

Supported CPU
CPU Socket Type : AM5
CPU Type : Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5

Chipsets
Chipset : AMD X670E

Memory
Number of Memory Slots : 4x288pin (DDR5)
Memory Standard : DDR5 4800
Maximum Memory Supported : 4x DDR5, Maximum Memory
Channel Supported : Dual Channel

Expansion Slots
PCI Express 5.0 x16 : 3 x PCI-E x16 slot, supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

Storage Devices
SATA 6Gb/s : 6x SATA 6G port
M.2 : 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
SATA RAID : Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset : Realtek® ALC4080 Codec
Audio Channels : 7.1-Channel High Definition Audio

Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

Onboard LAN
LAN Chipset : Realtek® RTL8125BG 2.5Gbps LAN
Max LAN Speed : 2.5Gbps

Wireless LAN : AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth : Supports Bluetooth® 5.2**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Rear Panel Ports
Back I/O Ports : Clear CMOS Button
Flash BIOS Button
DisplayPort
USB 2.0
2.5G LAN
Audio Connectors
Smart Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2×2 20Gbps (Type-C)
Wireless / Bluetooth
S/PDIF-Out
HDMI : 1 x HDMI

Internal I/O Connectors
Other Connectors : 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

Physical Spec
Form Factor : ATX
LED Lighting : RGB
Dimensions (W x L) : 304.8mmx243.84mm
Windows 11 Compatibility
Windows 11 : Support for Windows® 11 64-bit, Windows® 10 64-bit

Features
Features : Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory
Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
