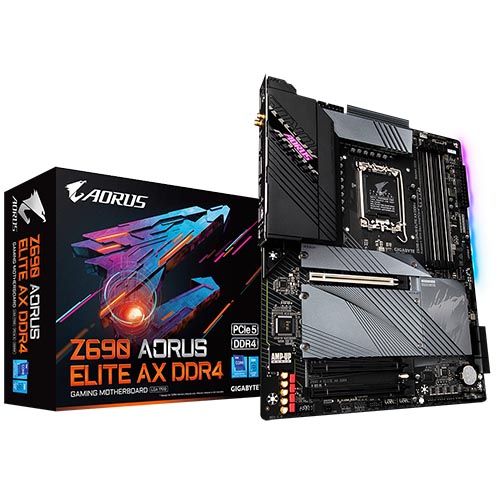

Gigabyte Z690 AORUS ELITE AX DDR4 Intel Z690 Chipset Motherboard
Gigabyte

Gigabyte Z690 AORUS ELITE AX DDR4 Intel Z690 Chipset Motherboard

SKU: —
₹24,000₹30,620Save ₹6,620
In stock
Ask a compatibility expert
✓ GST invoice✓ Secure payment✓ Expert support
PRODUCT DETAILS

Information

Buy Gigabyte Z690 AORUS ELITE AX DDR4 Intel Z690 Chipset Motherboard Online in India.

PcCustomizer provides best Gigabyte Z690 AORUS ELITE AX DDR4 Intel Z690 Chipset Motherboard price in India.

Supports 12th Gen Intel® Core™ Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Direct 16+1+2 Digital VRM Design with 70A Power Stage* and Tantalum Polymer Capacitor

Shielded Memory Routing to Avoid Interference

Fully Covered Thermal Design with High Coverage MOSFET Heatsinks

Onboard WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna

AMP-UP Audio with ALC1220 and WIMA Audio Capacitors

Fast 2.5GbE LAN with Bandwidth Management

4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards

SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds

RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card



CPU LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel® Z690 Express Chipset
Memory
  • Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
  • Realtek® ALC1220-VB CODEC* The back panel line out jack supports DSD audio.
  • High Definition Audio
  • 2-channel analog output
  • Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6 AX201:
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
  • 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB Chipset:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 4 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x reset button
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • Realtek® Gaming LAN Bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty

3 Years
