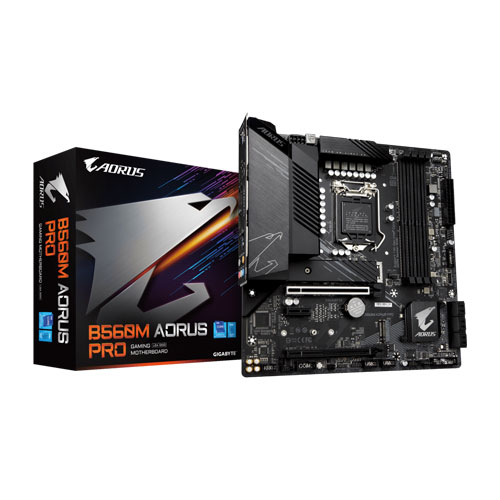

Gigabyte B560M Aorus Pro Intel Motherboard (rev. 1.0)
Gigabyte

Gigabyte B560M Aorus Pro Intel Motherboard (rev. 1.0)

SKU: —
₹13,500₹18,150Save ₹4,650
In stock
Ask a compatibility expert
✓ GST invoice✓ Secure payment✓ Expert support
PRODUCT DETAILS

Information

Buy Gigabyte B560M Aorus Pro Intel Motherboard (rev. 1.0) Online in India.

PcCustomizer provides best Gigabyte B560M Aorus Pro Intel Motherboard (rev. 1.0) price in India.

Supports 11th and 10th Gen Intel® Core™ Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Direct 12+1 Phases Digital VRM Solution with 50A DrMOS

Shielded Memory Routing for Better Memory Overclocking

Fully Covered Thermal Design with High Coverage MOSFET Heatsinks

Blazing Fast Intel® 2.5GbE LAN with cFosSpeed

Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard

SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s Transfer Speeds

Pre-installed IO Shield for Easy and Quick Installation

RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card



CPU LGA1200 package:
  1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
    * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
  3. L3 cache varies with CPU
Chipset Intel® B560 Express Chipset
Memory
  1. 11th Generation Intel® Core™ i9/i7/i5 processors:
    Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. 10th Generation Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version, HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® Audio codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
LAN
  1. Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
    * Supported by 11th Generation processors only.
Chipset:
  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support
  2. 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
  3. 2 x USB 3.2 Gen1 ports on the back panel
  4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
  1. 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header
  2. 2 x USB 3.2 Gen1 ports available through the internal USB header
Chipset+ 2 USB 2.0 Hub:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 6 x SATA 6Gb/s connectors
  9. 2 x M.2 Socket 3 connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 2 x Thunderbolt™ add-in card connectors
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 1 x serial port header
  18. 1 x Clear CMOS jumper
  19. 1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x USB Type-C® port, with USB 3.2 Gen2x2 support
  • 1 x USB 3.2 Gen2 Type-A port (red)
  • 2 x USB 3.2 Gen1 ports
  • 6 x USB 2.0/1.1 ports
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x RJ-45 port
  • 6 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton® Internet Security (OEM version)
cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
