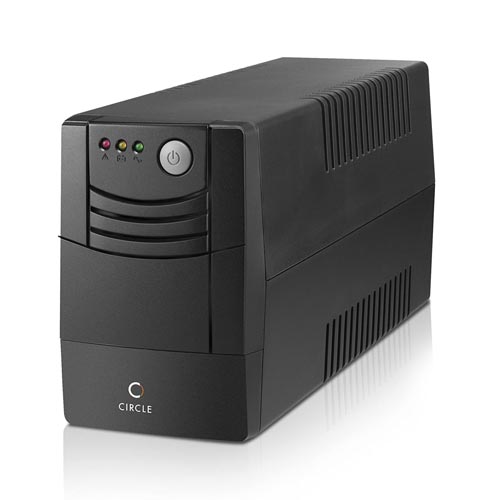

Circle Power Backup 600VA UPS

Circle Power Backup 600VA UPS

Overview :

BACKUP POWER
Protects computers from sudden power loss with the backup battery, and provides sufficient time to save valuable files as well as shut down the system safely.

VOLTAGE STABILIZER
Protects computer from blackouts, sags, and other voltage irregularities.

USER FRIENDLY
Automatic line-to-battery switchover and comprehensive display eases operations.



VA/W	600VA/360W
Voltage	230VAC
Voltage Range	140-300VAC
Frequency	>40Hz (Auto Sensing)
Voltage	230VAC
Voltage  Regulation (Batt. Mode)	+/-10%
Frequency	50Hz
Frequency Regulation (Batt. Mode)	+/-1 Hz
Output Waveform	Modified Sinewave
Battery Type	12V7Ah x 1
Backup Time (15″ monitor)	10-15 minutes
Recharge Time	6 hours to 90% after complete discharge
Typical	4-8 ms
AC Mode	Green lighting
Battery Mode	Yellow flashing
Fault	Red Lighting
Backup Mode	Sounding every  10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Fault	Continuously sounding
Full Protection	overload, overcharge and discharge protection
Net Weight	4.5kgs
Operating Environment	0- 50°C, 0-90 % relative humidity (non-condensing)
Noise Level	Less than 40dB
UPS Warranty	2 Year
Battery Warranty	1 Year
