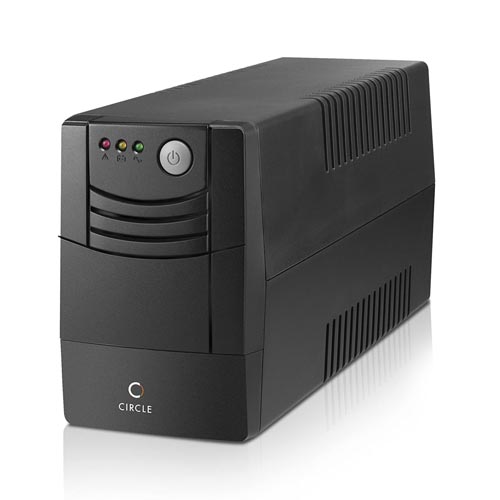

Circle Power 1KVA UPS

Circle Power 1KVA UPS

Overview :

BACKUP POWER
Protects computers from sudden power loss with the backup battery, and provides sufficient time to save valuable files as well as shut down the system safely.

VOLTAGE STABILIZER
Protects computer from blackouts, sags, and other voltage irregularities.

USER FRIENDLY
Automatic line-to-battery switchover and comprehensive display eases operations.



Weight	8 kg
Dimensions	37 × 17 × 18 cm
Brand	Circle
MODEL NO	Power1KVA1
CAPACITY	1000VA/600W
INPUT	Voltage : 230VAC
	Voltage Range : 140-300VAC
	Frequency : >40Hz (Auto Sensing)
OUTPUT	Voltage : 230VAC
	Voltage Regulation (Battery Mode) : +/-10%
	Frequency : 50Hz
	Frequency Regulation (Battery Mode) : +/-1 Hz
	Output Waveform : Modified Sinewave
BATTERY	Battery Type : 12V7Ah x 2
	Backup Time (15″ monitor) : 25-35 minutes
	Recharge Time : 6 hours to 90% after complete discharge
TRANSFER TIME (TYPICAL)	4-10 ms
INDICATOR	AC Mode : Green Lighting
	Battery Mode : Yellow Flashing
	Fault : Red Lighting
AUDIBLE ALARM	Backup Mode : Sounding Every 10 Seconds
	Low Battery : Sounding Every Seconds
	Overload : Sounding Every 0.5 Seconds
	Fault : Continously Sounding
PROTECTION	Full Protection Overload, Overcharge, and discharge protection
WARRANTY	2 Years (1 Year on battery)
