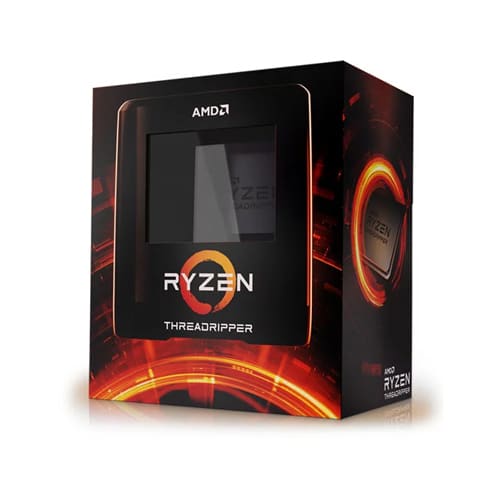

AMD 3rd Gen Ryzen Threadripper 3960X Desktop Processor

Proven By Hollywood
3rd Gen AMD Ryzen™ Threadripper™ has already demonstrated its value to special effects artists for major motion picture studios.

New Motherboards. Exclusive Technologies.
The new AMD TRX40 motherboards feature the debut of advanced PCIe® 4.0 connectivity on high-end desktop, delivering more bandwidth for creators than ever before.

24 cores provide an astonishing 48 threads of simultaneous multi-processing power, while 140MB of combined cache and vast I/O from the enthusiast-grade AMD TRX40 platform work together to deliver incredible performance.

• 24 cores and 48 threads for lightning-fast creative workloads.
• An unprecedented 88 total PCIe® 4.0 lanes to meet large GPU and NVMe needs.
• 140MB of combined cache for rapid access to large data sets.
• Quad channel DDR4 with available ECC support for reliable throughput.



Exceptional processors deserve exceptional cooling
Thermal solutions for Ryzen™ Threadripper processors from our partners.



NVMe RAID Support
Combine up to six NVMe disks in for superlative speed or rock-solid redundancy with Ryzen™ Threadripper™ processors. Want even more? Get double the bandwidth with PCIe® Gen 4, exclusively for high-end desktop on AMD TRX40 motherboards.



Zen Core Architecture
Improved energy efficiency, higher clock speeds and more cores than ever before.



AMD Ryzen™ Master Utility
The Simple and Powerful Overclocking Utility for AMD Ryzen™ processors.



# of CPU Cores	24
# of Threads	48
Base Clock	3.8GHz
Max Boost Clock	Up to 4.5GHz
Total L1 Cache	2.25MB
Total L2 Cache	12MB
Total L3 Cache	128MB
Unlocked	Yes
CMOS	TSMC 7nm FinFET
Package	sTRX4
PCI Express® Version	PCIe 4.0
Thermal Solution (PIB)	Not included
Default TDP / TDP	280W
Max Temps	68°C
*OS Support	Windows 10 – 64-Bit Edition
	RHEL x86 64-Bit
	Ubuntu x86 64-Bit
	*Operating System (OS) support will vary by manufacturer.
System Memory
System Memory Specification	3200MHz
System Memory Type	DDR4
Memory Channels	4
Key Features	Supported Technologies (Zen Core Architecture)
	AMD Ryzen™ Master Utility
